About This

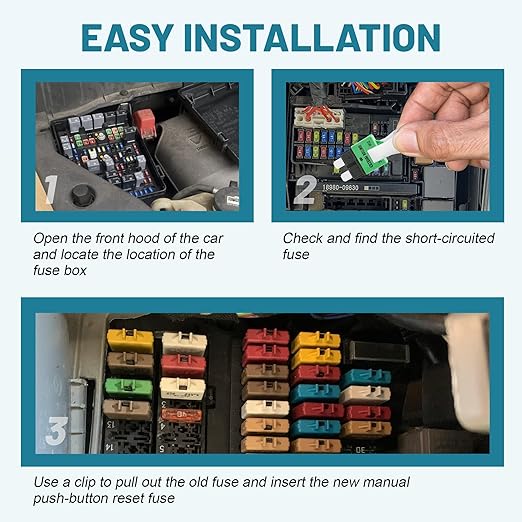

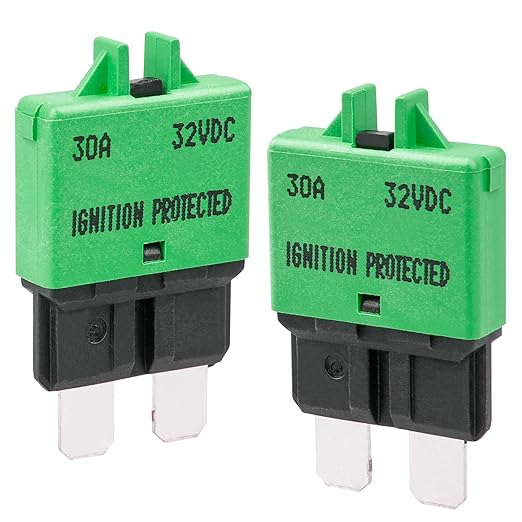

• The 30A standard manual reset fuse block is compatible with the regular/standard ATO and ATC fuse slots to replace the blown medium ATO / ATC fuses in emergency; Reusable designed and no need to carry a spare fuse all the time

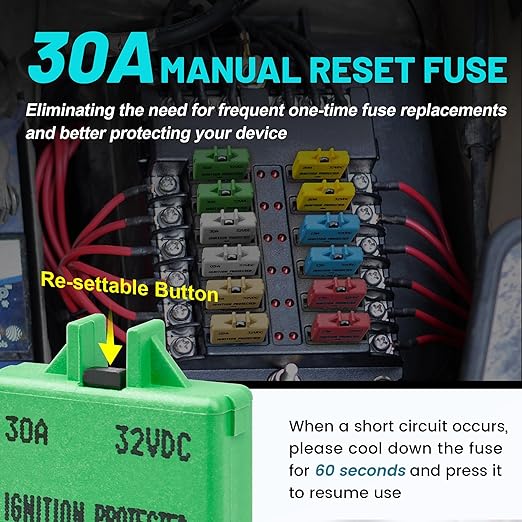

• Manually Reset: 30A manual resettable blade fuses in the fuse box blows, let it cool down for at least a minute and simply manually press the reset button on the top and the fuse can be used again; The obvious and resettable indicator also makes it easier to troubleshoot a possible issue
• The 30A manual push-button reset fuse block designed to provide overcurrent and short circuit protection, in the event of a short circuit, it disconnects automatically to prevent excessive current surges and protect the equipment
• 30 amp resettable fuse is made of nickel plated brass terminals, provides superior conductivity and corrosion resistance

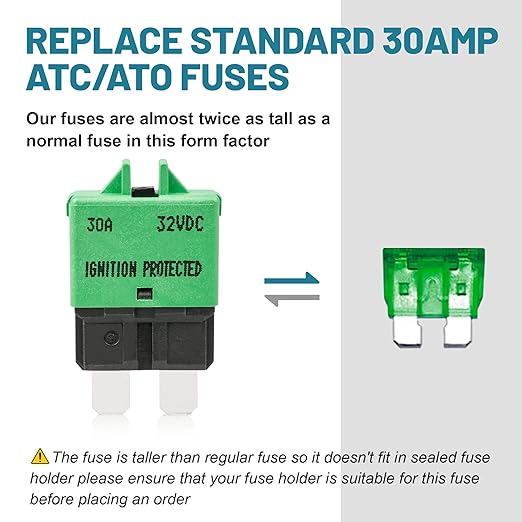

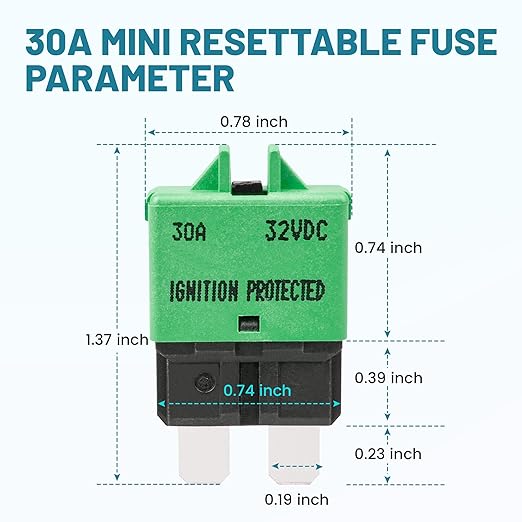

• Note: The height (excluding terminals) of this 30A ATO manual reset breaker is 1.36" (3.45cm), but a standard fuse usually is 0.48" (1.22cm), please make sure that your fuse box/fuse panel has enough space for installation

Overview

• Brand : NuIth
• Material : Brass
• Mounting Type : Through-Hole Mount
• Manufacturer : NuIth
• Unit Count : 2 Count
