About This

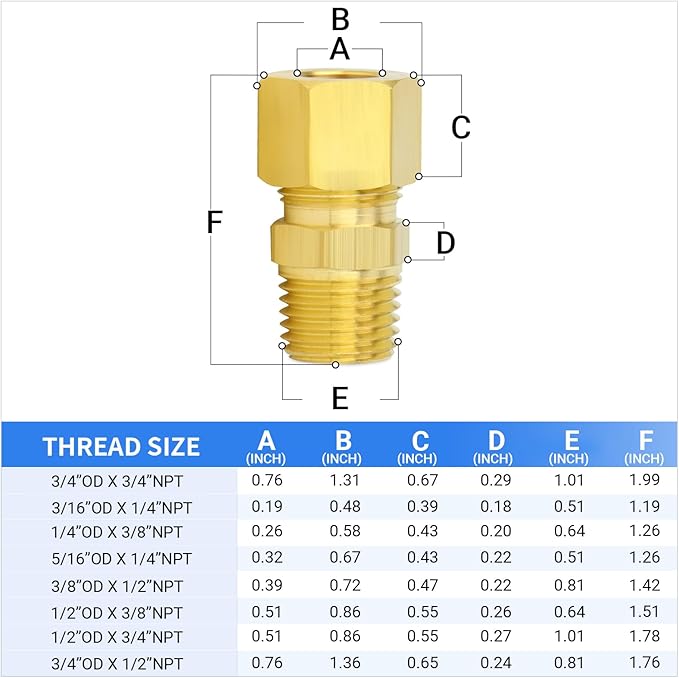

• SIZE - 3/16" Tube OD x 1/4" NPT Male Compression Tube Fitting. Note, NPT thread is the nominal pipe size and does not represent the actual diameter, please refer to the dimension drawing for specific diameter.
• MATERIAL - Made of high-quality brass, with strong wear and corrosion resistance, high compressive strength, durability, low magnetic permeability and high temperature ductility.

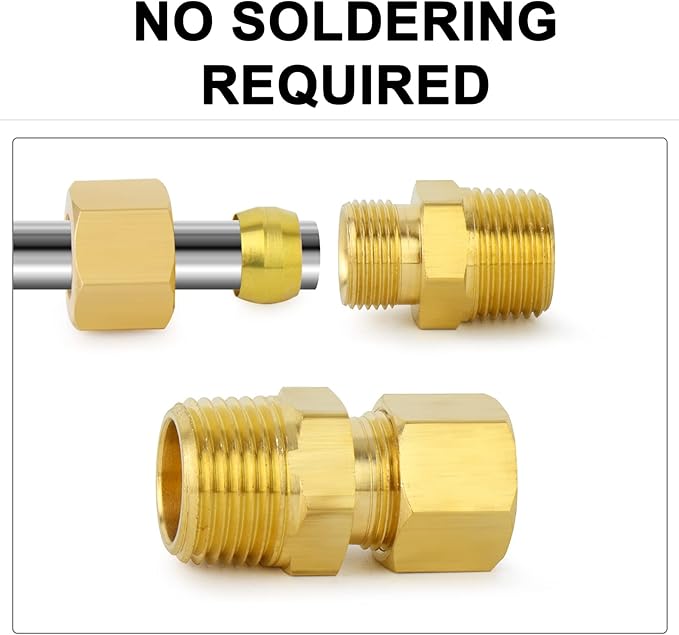

• Use - Suitable for oil, gas, water and other non-corrosive or corrosive pipeline systems, temperature and pressure resistance, good sealing and repeatability, no need for welding and flaring tools, easy disassembly, installation and maintenance, etc.

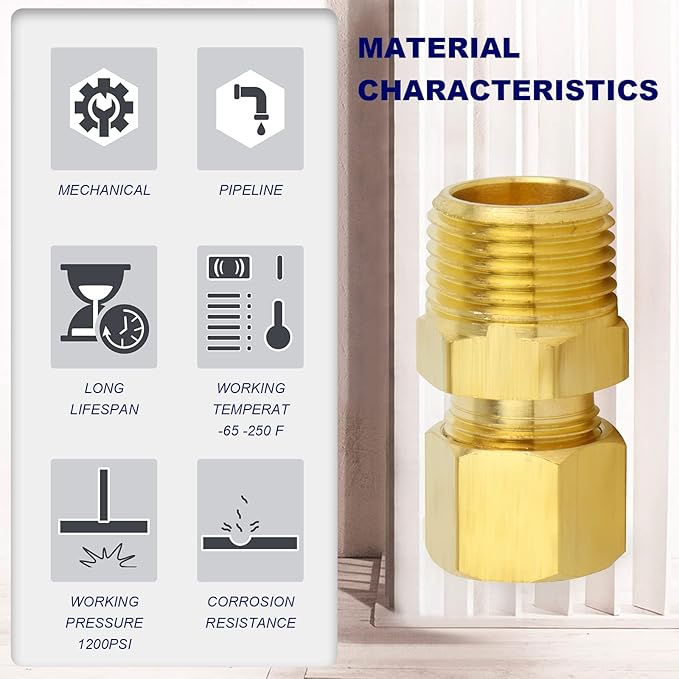

• WORKING PRESSURE & TEMPERATURE - 1200PSI maximum working pressure, temperature range -65°F to +250°F (-53°C to +121°C)

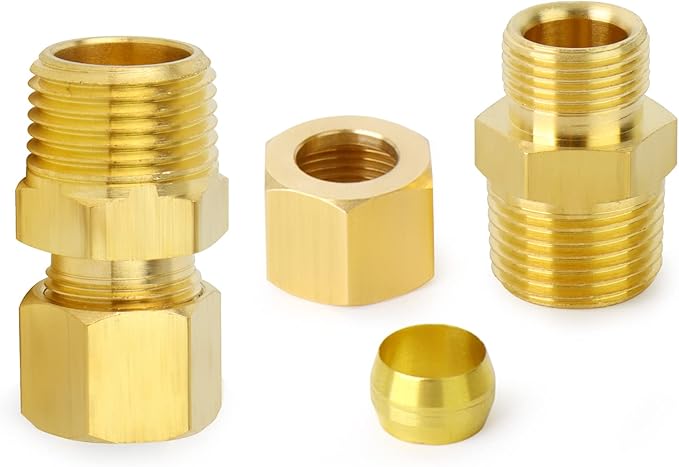

• WORKING PRINCIPLE - Compression Tube Fitting is to compress the ferrule by thread interlocking, and the two ends of the inner diameter of the ferrule tightly wrap the tube due to radial shrinkage, which plays a sealing role and realizes the sealing and tightening effect between the joint and the tube.

Overview

• Size : 3/16" OD x 1/4" NPT
• Material : Brass
• Brand : ChillWaves
• Color : Yellow
• Item Weight : 0.2 Pounds
• Manufacturer : ChillWaves
