Blue Sea Systems 4320 Water-Resistant Circuit Breaker Switch Panel, Gray, 4 Positions

Name: Blue Sea Systems 4320 Water-Resistant Circuit Breaker Switch Panel, Gray, 4 Positions
Brand: Blue+Sea+Systems
Price: 66.14 USD
Availability: InStock

$66.14

Shipping calculated at checkout.

About This

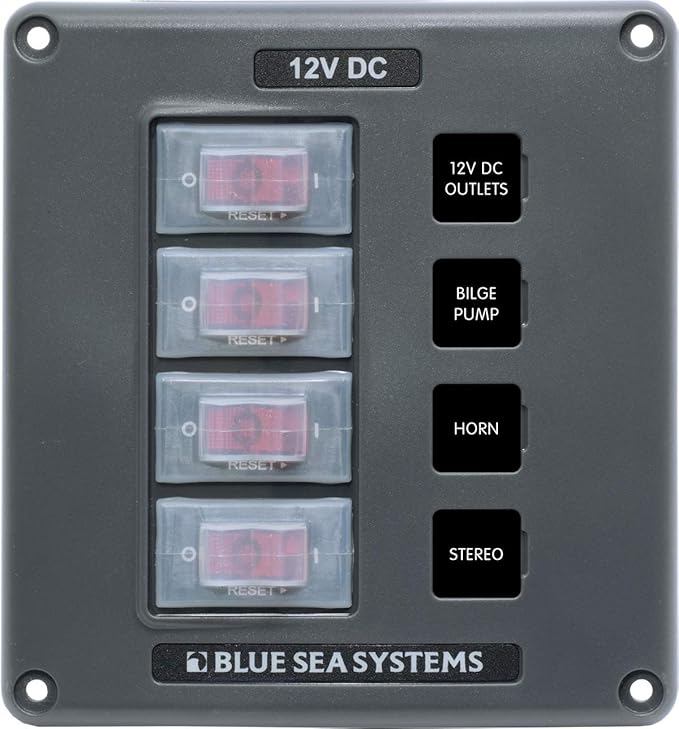

Blue Sea Systems Water-Resistant Circuit Breaker Panel, 4 Position, Gray. Nominal Voltage: 12V DC, Max Operating Amperage: 45A, Terminal Type: 1/4" Male Quick Connect, Hardware: Stainless Steel #6 x 5/8" mounting screws, Ring Terminal Size: M5 (#10).
Illuminated 15A circuit breakers provide switching, ON indication and overcurrent protection
Industry-standard sizes and mounting allow these panels to be easily retrofitted in an existing application
Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
Silicon breaker boots and gasket protects against water ingress. Panel front is IP66 when mounted with gasket in place - protected against powerful water jets (see inside back cover).

Overview

Operation Mode : manual
Current Rating : 15 Amps
Operating Voltage : 12 Volts
Contact Type : Make-before-break
Connector Type : quick connect,screws
Brand : Blue Sea Systems
Terminal : quick connect,screws

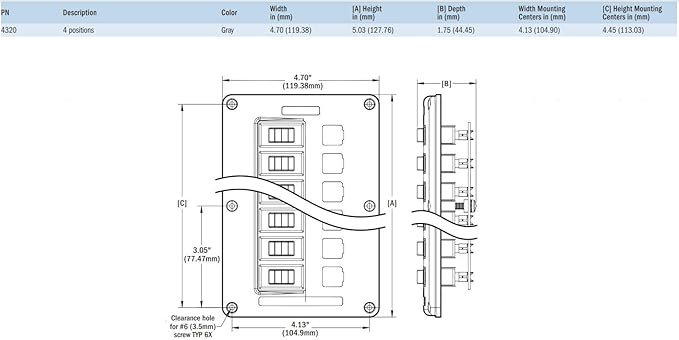

Item dimensions L x W x H : 6.8 x 5.5 x 4 inches
Circuit Type : 4 way
Actuator Type : Push Button
Switch Type Circuit Breaker : Material Plastic
: Switch Type Circuit Breaker
: Material Plastic
Mounting Type Panel Mount : Specification Met Ip66
: Mounting Type Panel Mount
: Specification Met Ip66
