Blue Sea Systems 5032 ST Blade Fuse Block Dual 12 with Ground and Cover, 100 Amps

Name: Blue Sea Systems 5032 ST Blade Fuse Block Dual 12 with Ground and Cover, 100 Amps
Brand: Blue+Sea+Systems
Price: 68.02 USD
Availability: InStock

$68.02

Shipping calculated at checkout.

About This

Split Bus Fuse Block with ground for use when a mix of switched and 24-hour circuits are desired in the same block
Provides two isolated groups of six ATO/ATC circuits

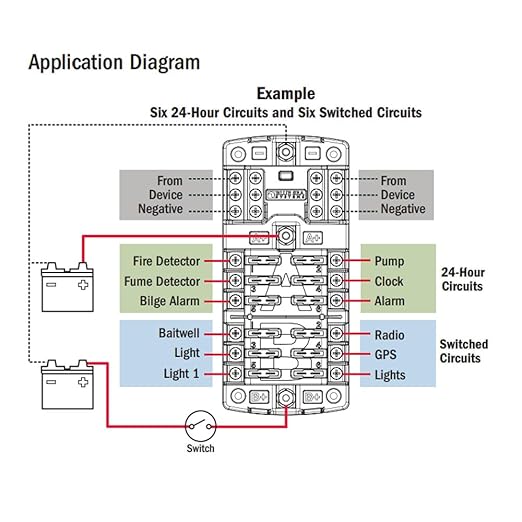

For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
Screw terminals for securing wires accept ring terminals

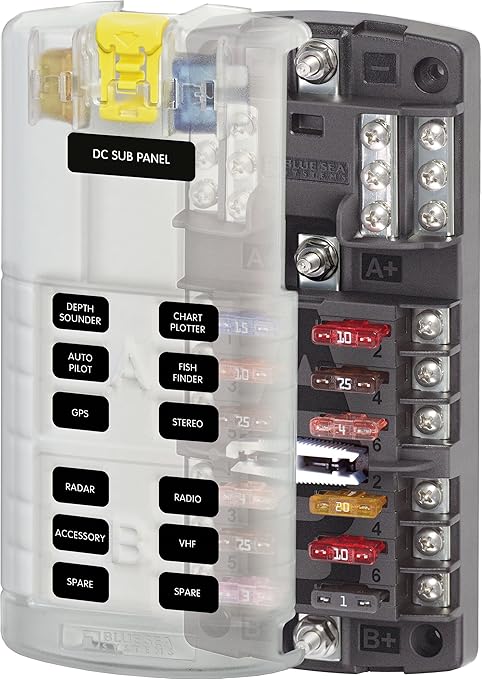

Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems

Overview

Current Rating : 100 Amps
Connector Type : Screw
Number Of Contacts : 12
Mounting Type : screw mount
Material : Plastic, Tin-plated Copper
Color : With cover
Brand : Blue Sea Systems
Voltage : 32 Volts (DC)
Number Of Poles : 12

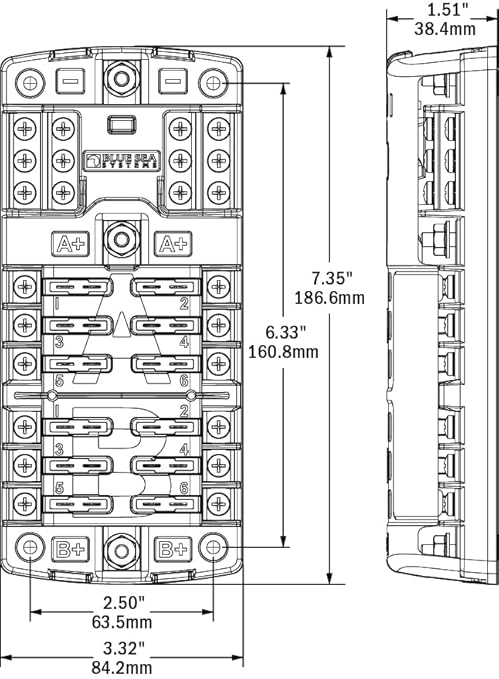

Product Dimensions : 3.32"W x 1.51"H
